Room Door BLE Upgrade Module

Room Door BLE Upgrade Module

$220.00 USD
$220.00 USD MRP
-Liquid error (snippets/price line 92): Computation results in '-Infinity'% Sold out

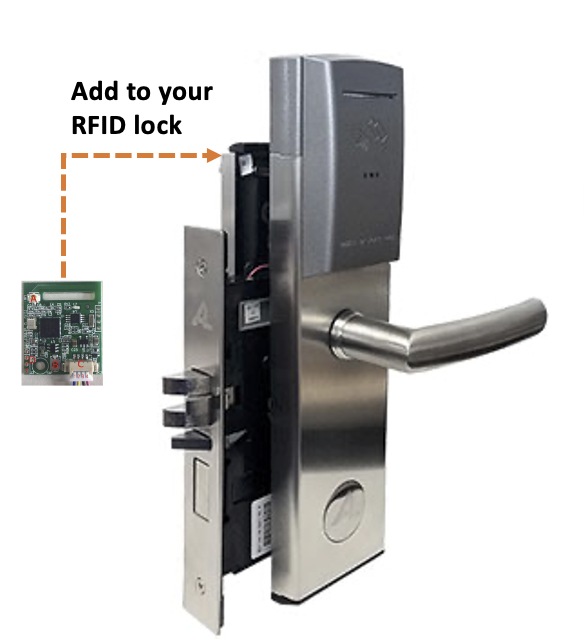

The BLE upgrade module allows Hoteliers to upgrade existing locks for a low price. The BLE Module chip is retrofitted into the standard RFID lock allowing the lock to have capabilities such as guests unlocking their rooms through their smartphones, contactless check-in, and an optional Wi-Fi gateway to enable remote unlock.



Additional information

Benefits

– easy installation
– puts room on eco mode upon guest check out
– puts the room in comfort mode before the next guest arrives
– -up to annual savings on HVAC
Specifications

–
System Mode

Heat, Cool, Auto, Off, Emergency Heat (Heat Pump Only)
Fan Mode

On, Auto, Circle (adjustable)
Advanced

Setting temperature locally or remotely
Auto-changeover between Heat and Cool Mode (System Auto)
Compressor protection time is available for select
Failure protection by cutting off all circuit relays
Smart warmup, low temperature protection
Auto Mode Deadband

1.5 °C, 3 °F
Temp. Setpoint Span

0.5 °C, 1 °F
Wi-Fi

802.11 b/g/n @ 2.4GHz
Tx Power

±2dBM
Radio

915MHz
LCD Scree

4.3 inch color touch screen
PIR Sensor

Detect Occupancy
Sensing Distance 4M, Angle 120°
Electrical Rating

24 VAC, 1A Carry, 5A Surge 50/60Hz
Switches / Relays

9 Latching type relay, 1A maximum loading
Temperature

Sensing Range: -40~125°C
Sensing Accuracy: ±1°C
Response Time: 2Min
Humidity

Sensing Range: 0~100%
Sensing Accuracy: ±3% (20% ~ 80%)
Response Time: 2Min
Operating Environment

0~50°C, 32 ~ 120°F
Humidity Range: 5% ~95%
Storage Temperaure

-30°C ~ 60°C, -22°F ~ 140°F
Wiring

18 AWG, Requires both R and C wires from the HVAC system
Dimensions

135(L) x 77.36(W) x 23.5(H) mm
Mounting Type

Wall Mounting
