DPC Thermostat Smart Temperature Control System Heat, Cool, Auto
DPC Thermostat Smart Temperature Control System Heat, Cool, Auto
Couldn't load pickup availability
Description

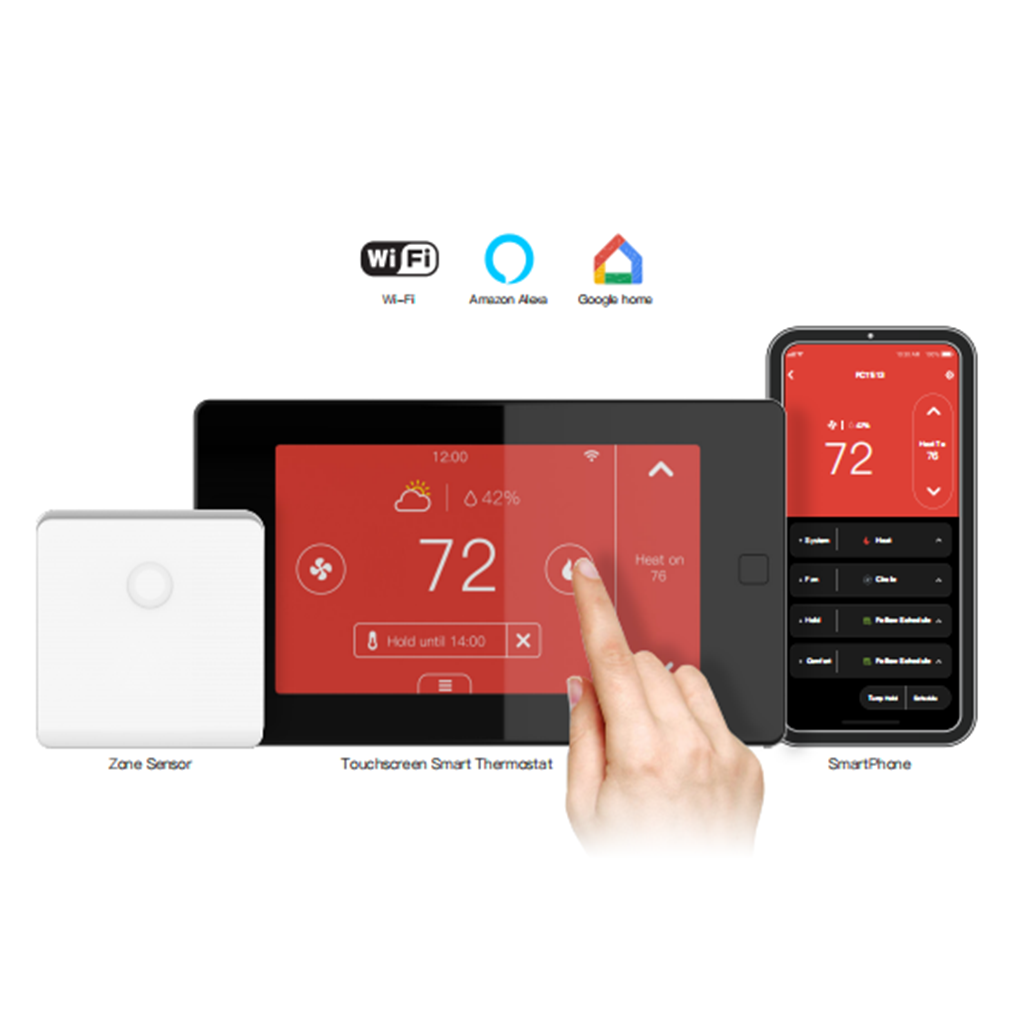

- The DPC Thermostat is a smart temperature control system that is seamlessly integrated into technological surroundings. Guests and Hoteliers have the ability to control the temperature of the room from wherever they are through the DPC app. With various temperature modes and settings such as eco and comfort mode, guests can enjoy a comfortable and relaxing hotel experience, while Hotelier can enjoy the benefits of an efficient temperature control system.
Benefits
- Easy Installation
- Puts room on eco mode upon guest check out
- Puts the room in comfort mode before the next guest arrives
up to 17% annual savings on HVAC

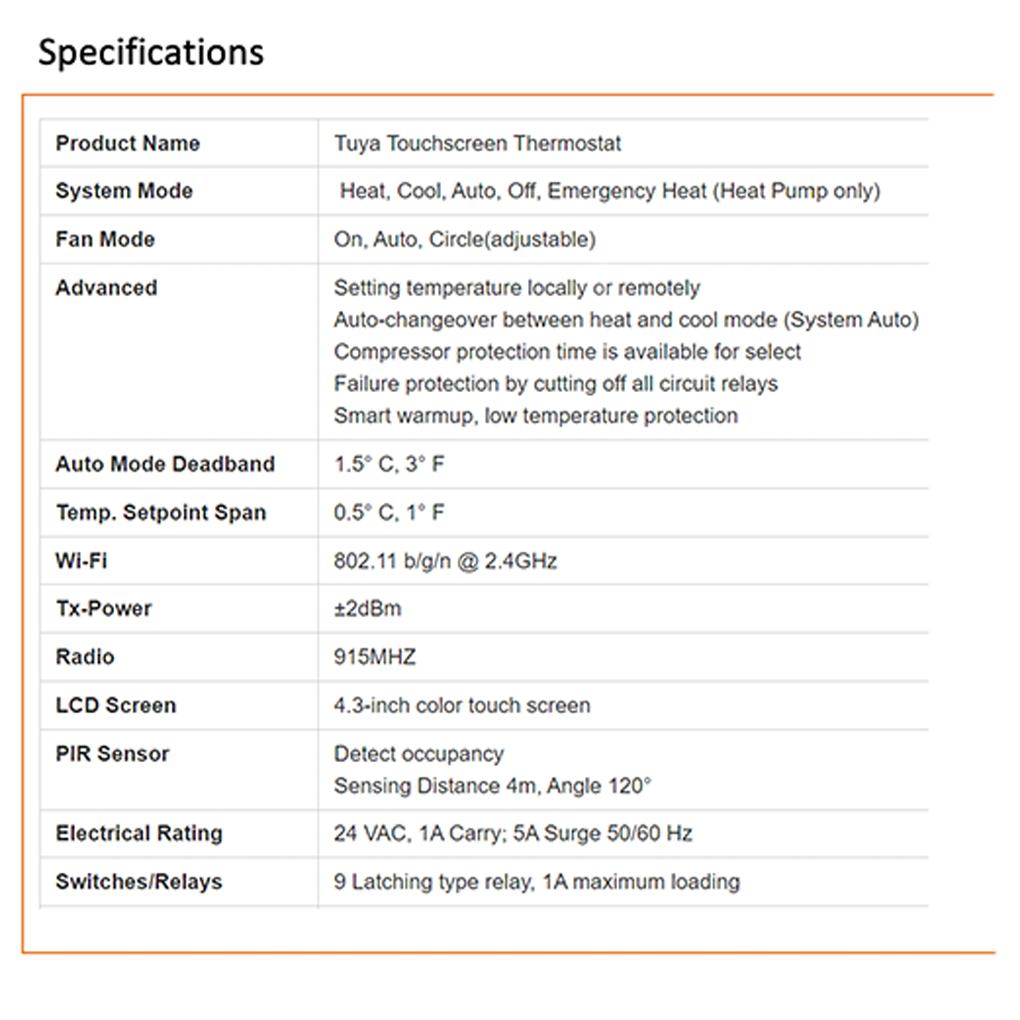

Additional information
| System Mode |
Heat, Cool, Auto, Off, Emergency Heat (Heat Pump Only) |
|---|---|
| Fan Mode |
On, Auto, Circle (adjustable) |
| Advanced |
Setting temperature locally or remotely |
| Auto Mode Deadband |
1.5 °C, 3 °F |
| Temp. Setpoint Span |
0.5 °C, 1 °F |
| Wi-Fi |
802.11 b/g/n @ 2.4GHz |
| Tx Power |
±2dBM |
| Radio |
915MHz |

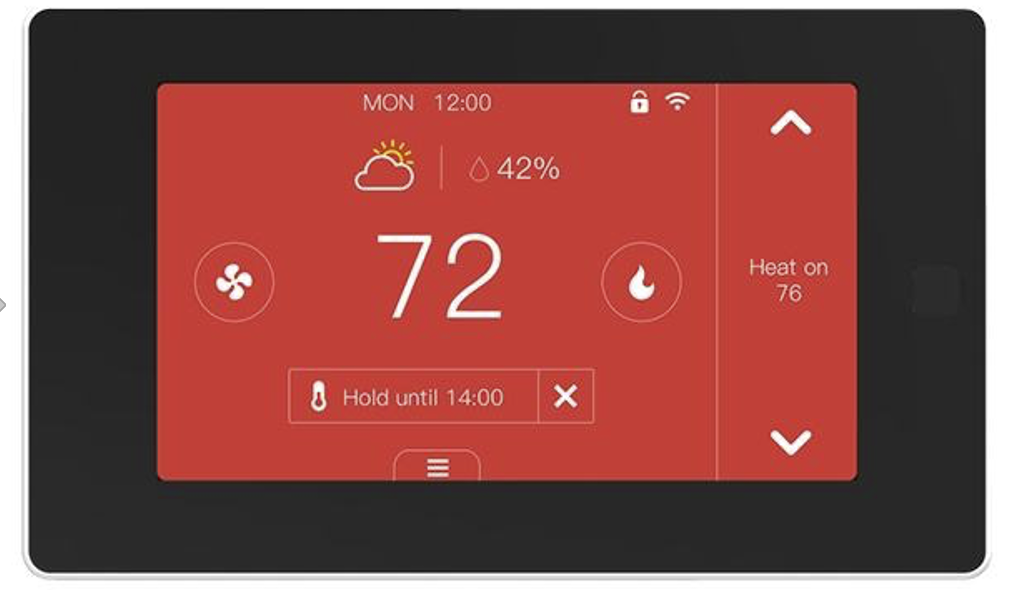

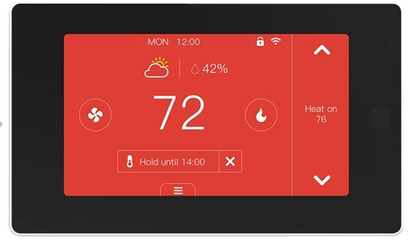

| LCD Scree |
4.3 inch color touch screen |
| PIR Sensor |
Detect Occupancy |
| Electrical Rating |
24 VAC, 1A Carry, 5A Surge 50/60Hz |
| Switches / Relays |
9 Latching type relay, 1A maximum loading |

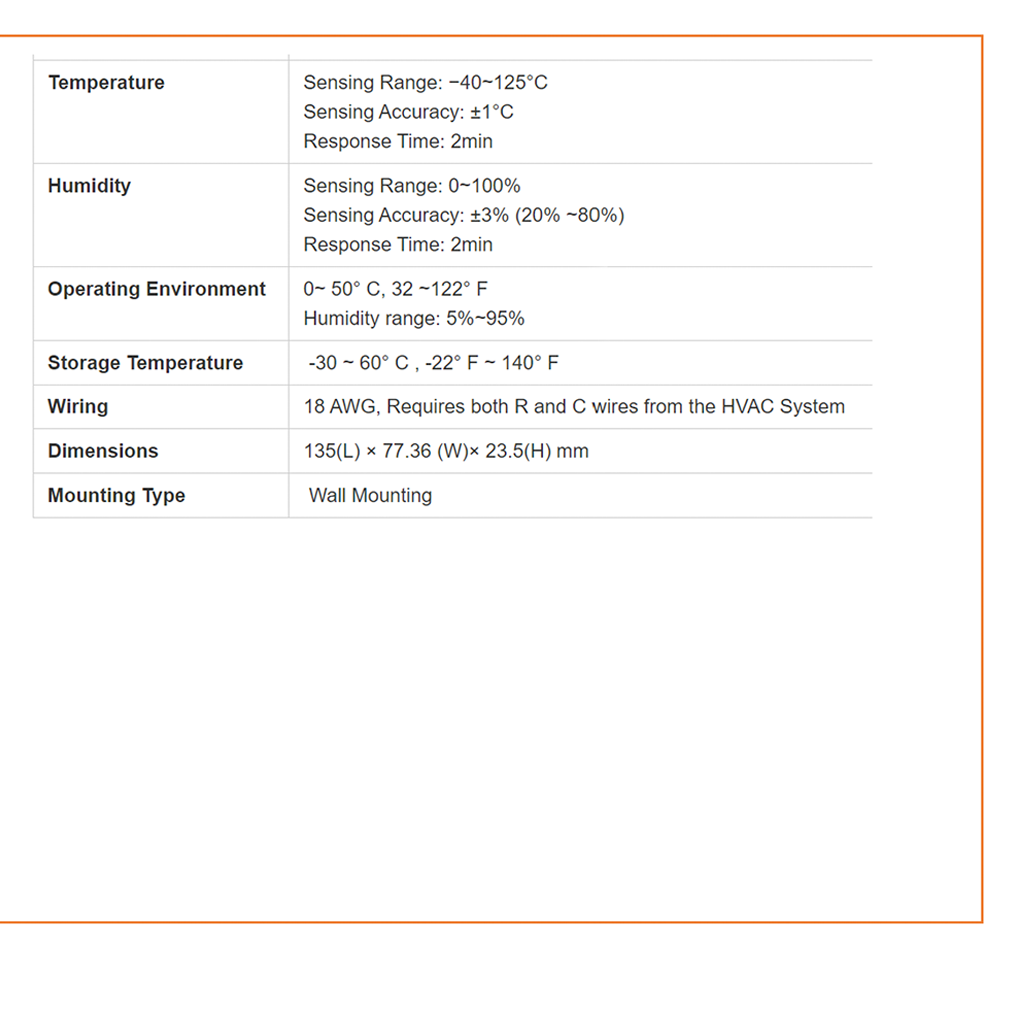

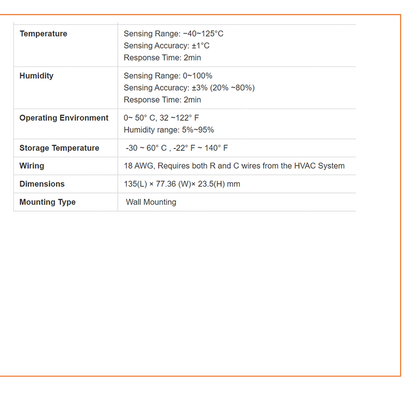

| Temperature |
Sensing Range: -40~125°C |
| Humidity |
Sensing Range: 0~100% |
| Operating Environment |
0~50°C, 32 ~ 120°F |
| Storage Temperature |
-30°C ~ 60°C, -22°F ~ 140°F |
| Wiring |
18 AWG, Requires both R and C wires from the HVAC system |
| Dimensions |
135(L) x 77.36(W) x 23.5(H) mm |
| Mounting Type |
Wall Mounting |
