Room Door BLE Upgrade Module for Upgrade Existing Locks
Room Door BLE Upgrade Module for Upgrade Existing Locks
Regular price
$251.99 USD
Sale price
$251.99 USD
Regular price
MRP
Unit price
/
per
Couldn't load pickup availability
Description

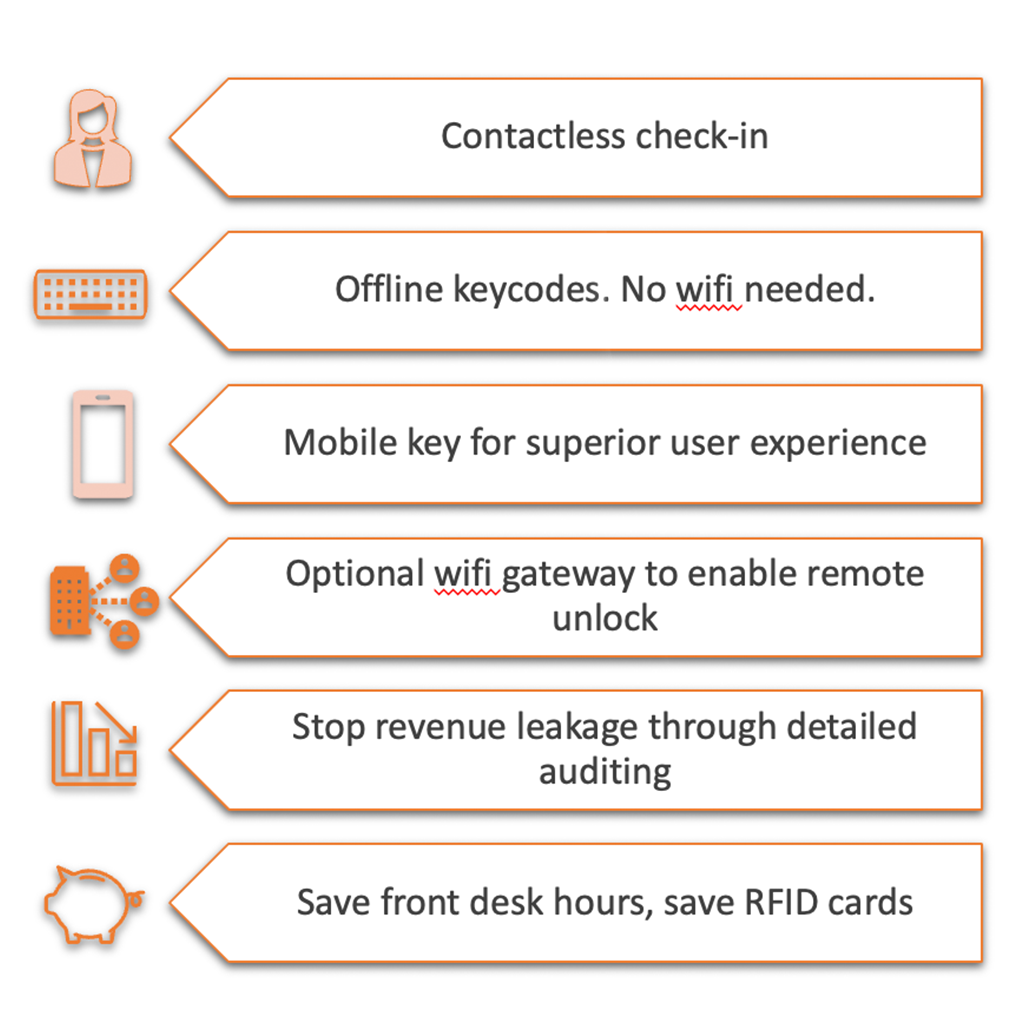

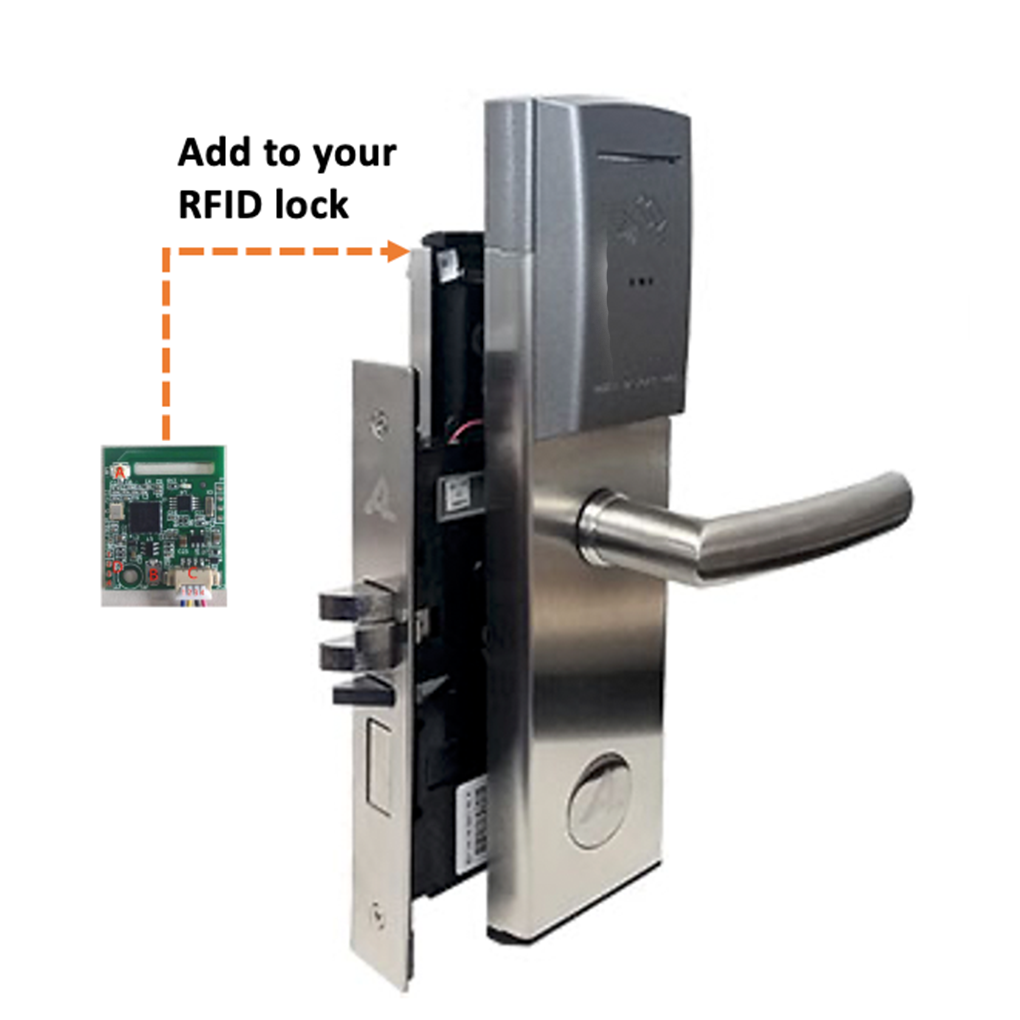

- The BLE upgrade module allows Hoteliers to upgrade existing locks for a low price. The BLE Module chip is retrofitted into the standard RFID lock allowing the lock to have capabilities such as guests unlocking their rooms through their smartphones, contactless check-in, and an optional Wi-Fi gateway to enable remote unlock.
Benefits
-
Easy Installation
- The modular structure of the product allows for it to be installed with minimal effort.
- Can be installed in existing hardware
- Cost-effective solution for updating locks
- Higher level of safety

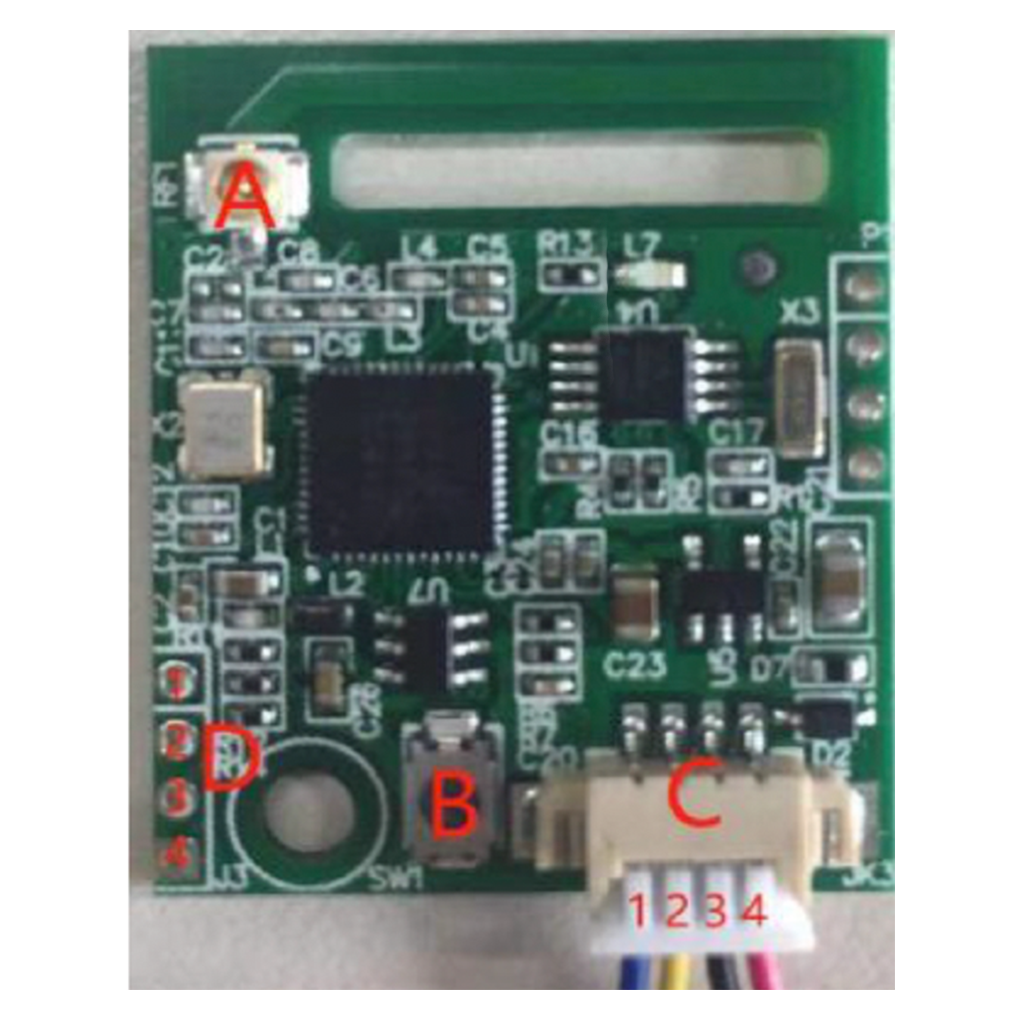

SPECIFICATIONS
|
NO. |
Description |
Remark |
|
|
A |
Bluetooth antenna interface (Stand by) |
When cooperating with the gateway, it depends on real situations. |
|
|
B |
Reset button |
|
|
|
C |
Power point machine interface |
From “1”to “4” |
|
|
1 |
Motor + |
||
|
2 |
Motor - |
||
|
3 |
Power - |
||
|
4 |
Power + |
||
|
D |
Reserved interface |
From “1”to “4” |
|
|
1 |
IO1 |
||
|
2 |
IO2 |
||
|
3 |
IO3 |
||
|
4 |
Power - |
||
|
BLE |
4.1BLE |
|
Mobile phone system |
Android 4.3/IOS7.0 |
|
Power Supply |
4 AA |
|
Low power alarm voltage |
4.8V |
|
Voltage |
4.5~15V |
|
Standby current |
25 microamp |
|
Working current |
Less than 200 milliampere |
|
Unlocking time |
≈1.5 seconds |
|
Operating temperature |
-20~70 ℃ |
|
Unlocking mode |
App, Mechanical key |
|
Output voltage |
4.2V~14.7V |
